8080000060CF-8080000061CF-8080000060FF-8080000061FF
Type
Applications
Voltage
12,24
Dimensions
L:152 - H:436 - W:390
kit universale del condizionatore d'aria per qualsiasi veicolo per il
lavoro. Se avete bisogno di un impianto di riscaldamento o aria condizionata
per la vostra cabina, trattore, macchina per la costruzione speciale o veicolo,
ecc... La nuova linea X-SYSTEM nelle sue diverse versioni può aiutarti ha
trovare il giusto confort.

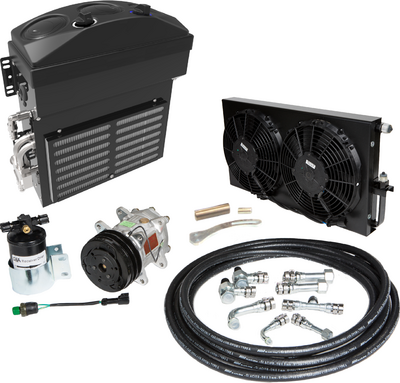

Contenuto del kit:
HVAC Unit INCLUDED
Install Kit INCLUDED
Condenser INCLUDED
Compressor INCLUDED
Moun Kit INCLUDED
Hose & fittings INCLUDED
Pressure switches INCLUDED
Receiver Dryer INCLUDED
Bracket filter INCLUDED
Wiring INCLUDED
Condenser Fan INCLUDED
Gas R134a NOT INCLUDED
Technical Data
| Code | Voltage (V) | Air (m3/h) | Heating (Kw) | Cooling (Kw) | Amper (A) | Weight (Kg) |
|---|---|---|---|---|---|---|
| 8080000060CF | 12 | 750 | 6 | 8 | 15 | 9,8 |
| 8080000060FF | 12 | 750 | - | 8 | 15 | 9,8 |
| 8080000061CF | 24 | 750 | 6 | 8 | 8 | 9,8 |
| 8080000061FF | 24 | 750 | - | 8 | 8 | 9,8 |
| Code | 8080000060CF |
|---|---|
| Voltage (V) | 12 |
| Air (m3/h) | 750 |
| Heating (Kw) | 6 |
| Cooling (Kw) | 8 |
| Amper (A) | 15 |
| Weight (Kg) | 9,8 |
| Code | 8080000060FF |
|---|---|
| Voltage (V) | 12 |
| Air (m3/h) | 750 |
| Heating (Kw) | - |
| Cooling (Kw) | 8 |
| Amper (A) | 15 |
| Weight (Kg) | 9,8 |
| Code | 8080000061CF |
|---|---|
| Voltage (V) | 24 |
| Air (m3/h) | 750 |
| Heating (Kw) | 6 |
| Cooling (Kw) | 8 |
| Amper (A) | 8 |
| Weight (Kg) | 9,8 |
| Code | 8080000061FF |
|---|---|
| Voltage (V) | 24 |
| Air (m3/h) | 750 |
| Heating (Kw) | - |
| Cooling (Kw) | 8 |
| Amper (A) | 8 |
| Weight (Kg) | 9,8 |
