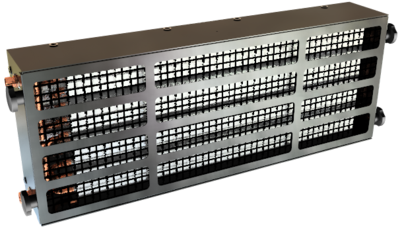

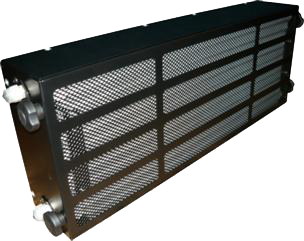

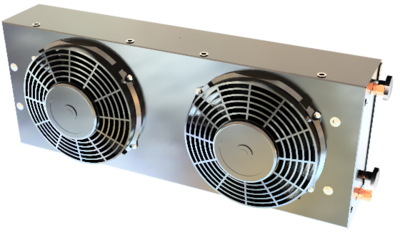

A00295ES - A00295ES/1 (12v) / A00296ES (24v)
Part. A00295ES: puller
Part. A00295ES/1: pusher
Part. A00296ES: puller
Technical Data
| Code | Voltage (V) | Air (m3/h) | Dissipable thermal power (Kcal/h) | Fin pitch (mm) | Amper (A) | Weight (Kg) |
|---|---|---|---|---|---|---|
| A00295ES - A00295ES/1 | 12 | 2x1060 | 12000 | 3.25 | 2x6.7 | 13.8 |
| A00296ES | 24 | 2x1070 | 12000 | 3.25 | 2x3.7 | 13.8 |
| Code | A00295ES - A00295ES/1 |
|---|---|
| Voltage (V) | 12 |
| Air (m3/h) | 2x1060 |
| Dissipable thermal power (Kcal/h) | 12000 |
| Fin pitch (mm) | 3.25 |
| Amper (A) | 2x6.7 |
| Weight (Kg) | 13.8 |
| Code | A00296ES |
|---|---|
| Voltage (V) | 24 |
| Air (m3/h) | 2x1070 |
| Dissipable thermal power (Kcal/h) | 12000 |
| Fin pitch (mm) | 3.25 |
| Amper (A) | 2x3.7 |
| Weight (Kg) | 13.8 |
