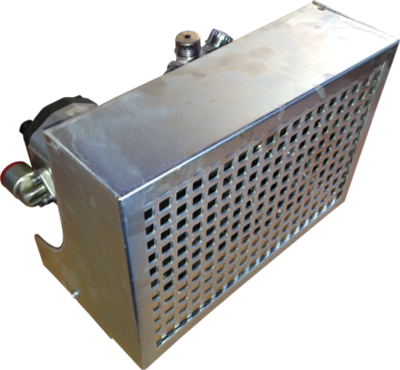

Compressor 7H15 pulled by Hydraulic Motor - 1

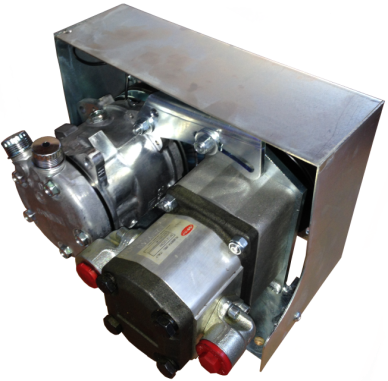

Compressor 7H15 pulled by Hydraulic Motor - 2

Hydraulic motor

Theorical Displacement: 11.1 cm3/giro
Minimum speed: 600 gir/min.
Maximum speed: 3500 gir/min.
Continuos maximum pressure: 270 bar
Capacity:: 16,15 L/min
Torque at 100 bar: 15,02 Nm

Parameters

Displacement:: 154cc
Operating speed: 7000rpm Max.continuos
Refrigerant: R-134a
Rotation: clockwise

Technical Data

Code Voltage (V) Model
AE010AS 12 Unidirezionale rotazione destra
AE011AS 24 Unidirezionale rotazione destra
CodeAE010AS
Voltage (V)12
ModelUnidirezionale rotazione destra
CodeAE011AS
Voltage (V)24
ModelUnidirezionale rotazione destra
