8080000040CF-8080000041CF-8080000040FF-8080000041FF
Type
Applications
Voltage
12,24
Dimensions
L:170 - H:497 - W:170
kit universale del condizionatore d'aria per qualsiasi veicolo per il
lavoro. Se avete bisogno di un impianto di riscaldamento o aria condizionata
per la vostra cabina, trattore, macchina per la costruzione speciale o veicolo,
ecc... La nuova linea X-SYSTEM nelle sue diverse versioni può aiutarti ha
trovare il giusto confort.

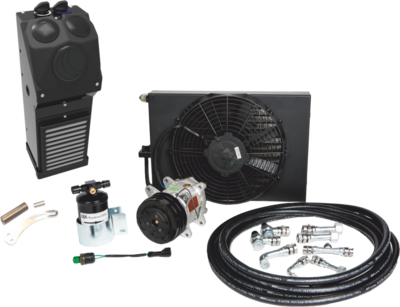

Contenuto del kit:
HVAC Unit INCLUDED
Install Kit INCLUDED
Condenser INCLUDED
Compressor INCLUDED
Moun Kit INCLUDED
Hose & fittings INCLUDED
Pressure switches INCLUDED
Receiver Dryer INCLUDED
Bracket filter INCLUDED
Wiring INCLUDED
Condenser Fan INCLUDED
Gas R134a NOT INCLUDED
Technical Data
| Code | Voltage (V) | Air (m3/h) | Heating (Kw) | Cooling (Kw) | Amper (A) | Weight (Kg) |
|---|---|---|---|---|---|---|
| 8080000040CF | 12 | 410 | 4 | 5,5 | 20 | 7,8 |
| 8080000041CF | 24 | 450 | 4 | 5,5 | 11 | 7,8 |
| 8080000040FF | ||||||
| 8080000041FF |
| Code | 8080000040CF |
|---|---|
| Voltage (V) | 12 |
| Air (m3/h) | 410 |
| Heating (Kw) | 4 |
| Cooling (Kw) | 5,5 |
| Amper (A) | 20 |
| Weight (Kg) | 7,8 |
| Code | 8080000041CF |
|---|---|
| Voltage (V) | 24 |
| Air (m3/h) | 450 |
| Heating (Kw) | 4 |
| Cooling (Kw) | 5,5 |
| Amper (A) | 11 |
| Weight (Kg) | 7,8 |
| Code | 8080000040FF |
|---|---|
| Voltage (V) | |
| Air (m3/h) | |
| Heating (Kw) | |
| Cooling (Kw) | |
| Amper (A) | |
| Weight (Kg) |
| Code | 8080000041FF |
|---|---|
| Voltage (V) | |
| Air (m3/h) | |
| Heating (Kw) | |
| Cooling (Kw) | |
| Amper (A) | |
| Weight (Kg) |
